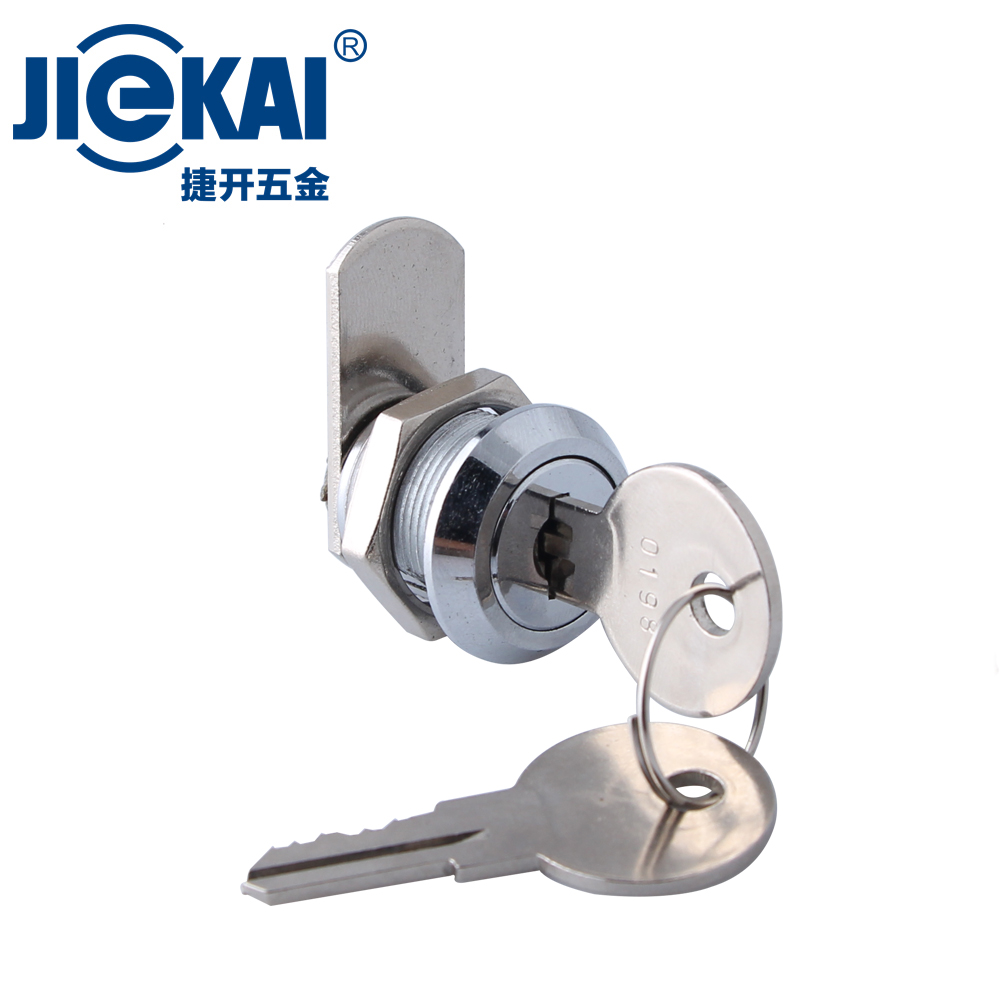

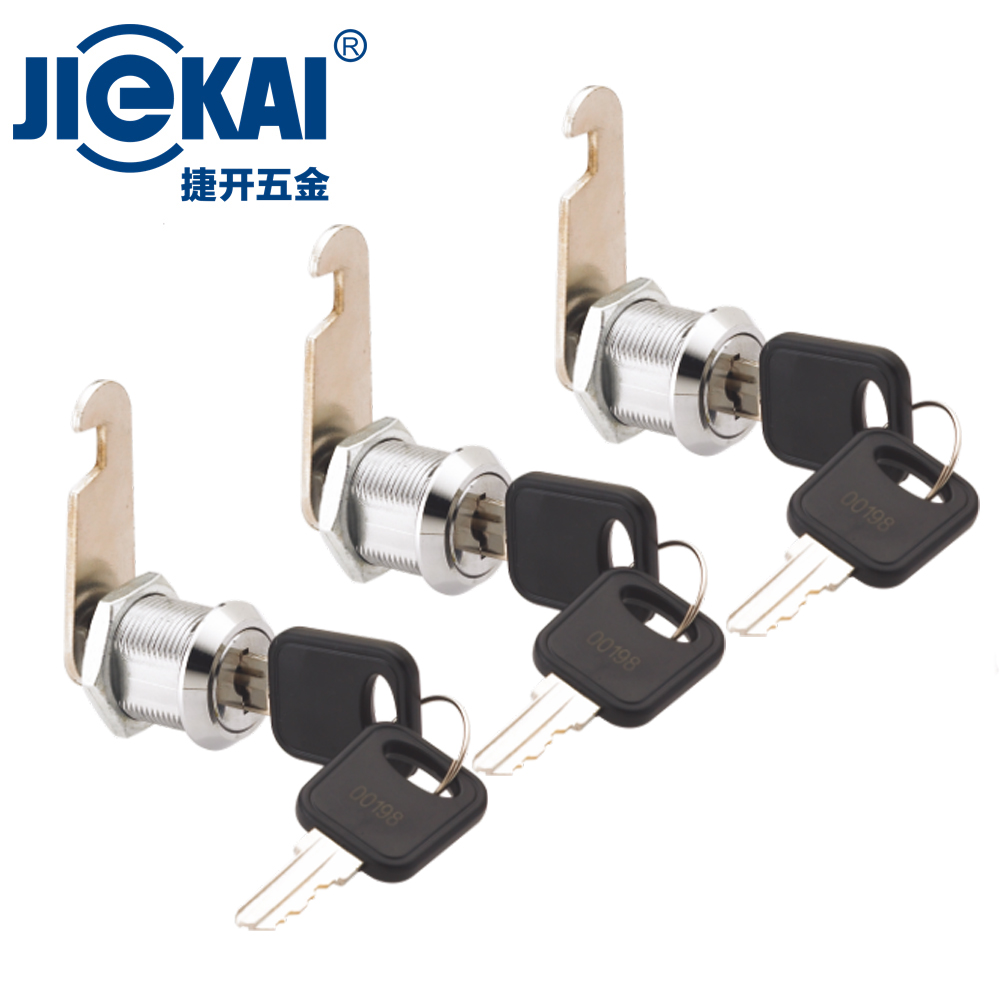

JK503規格說明(轉舌鎖)
產品類別：轉舌鎖
產品型號：JK503
開孔尺寸：19MM
鎖體材質及電鍍：鋅合金鎖芯鎖殼 鍍鉻
鑰匙類型及電鍍及插拔：5排片銅鑰匙 鍍鎳 鑰匙單抽或雙抽
固定方式（鎖體&舌片）：鎖體固定方式螺母，舌片固定方式螺絲或插片

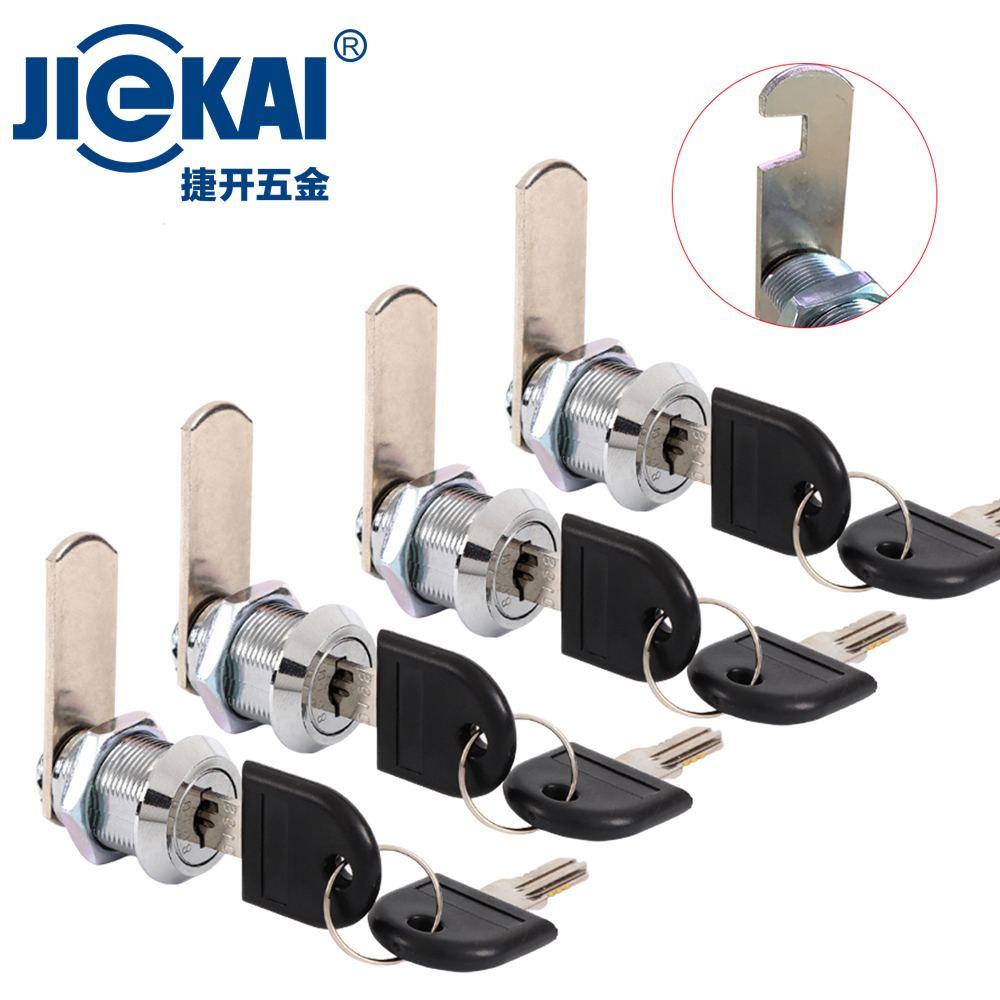

功能尺寸：16/20/25/30mm
適配舌片：可選配多種舌片/可定制舌片
鑰匙組合： 300組鑰匙組合 KA#198
特殊：鑰匙可包膠套或不包膠套，可單邊洗齒或雙邊洗齒，可左轉或右轉

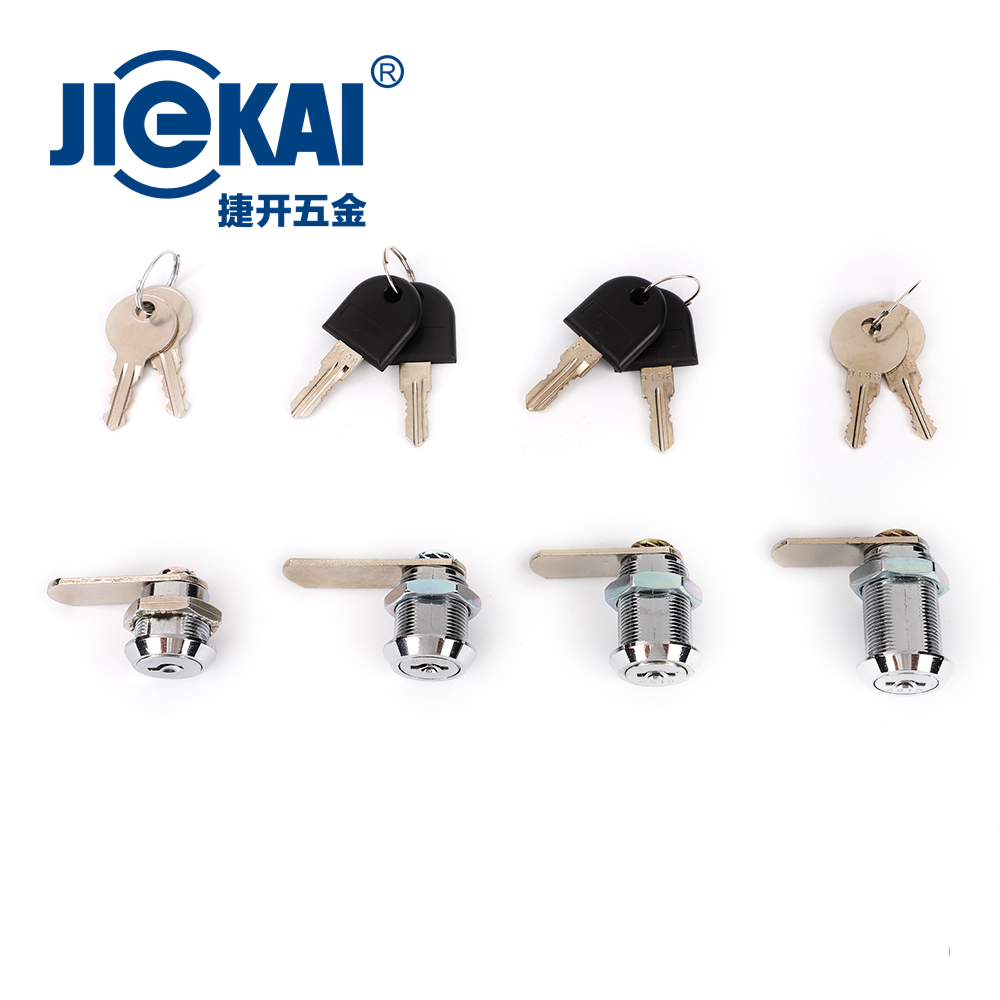

規格表：
序號 | 鎖型號 | 檔位 | 鑰匙抽拔 | 轉向 | L1尺寸mm | L2尺寸mm |
1 | JK503-16 | 2 | 單/雙抽 | 90° | 16 | 33 |
2 | JK503-20 | 2 | 單/雙抽 | 90° | 20 | 37 |
3 | JK503-25 | 2 | 單/雙抽 | 90° | 25 | 42 |
4 | JK503-30 | 2 | 單/雙抽 | 90° | 30 | 47 |

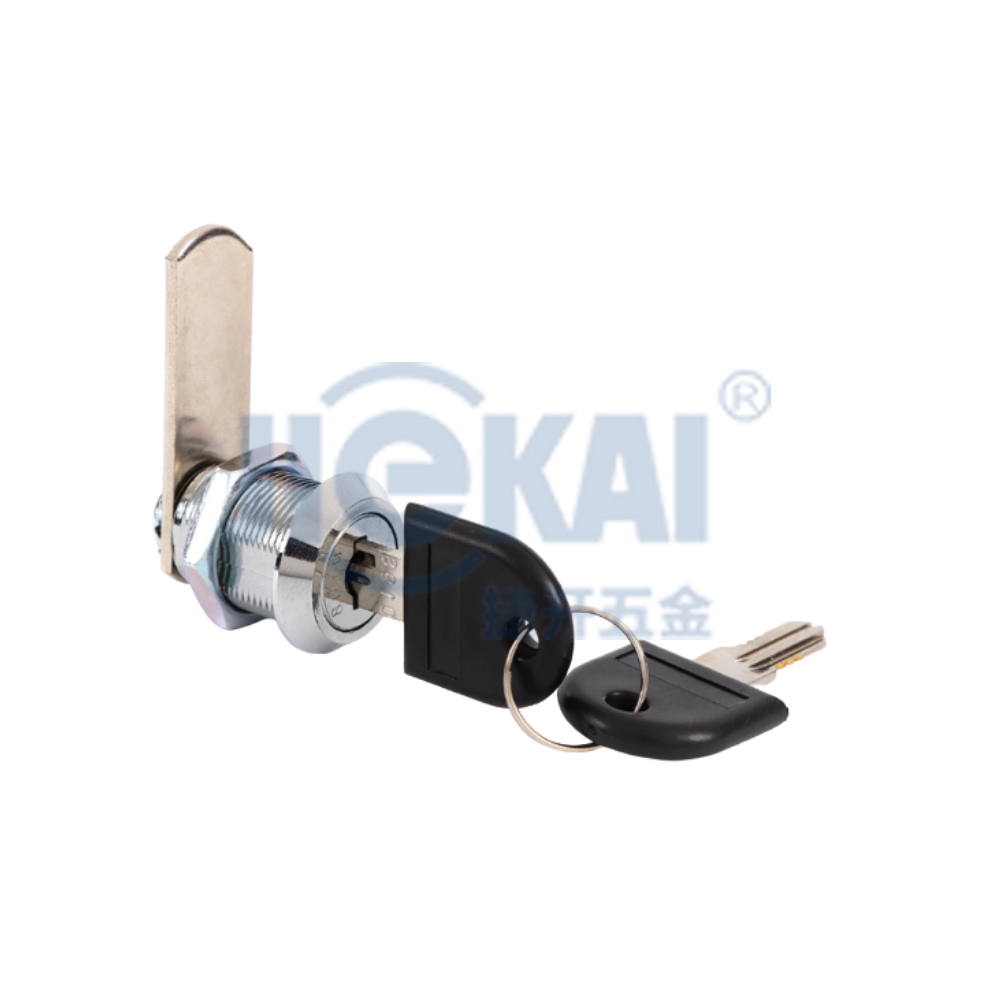

19mm Standard Die-cast Cam Lock
Product type：Cam lock
Item No.：JK503
Recommended hole size：19MM
Lock Material and finish: Zinc alloy housing and cylinder,bright chrome plated.
Key type, finish and pulls: 5 dics tumbler mechanisms, Brass key, nickel plated, Key may be withdrawn in one or both positions.
Fixed way（lock&cam): Nut mounted,Cam is fixed by screw or speed clip .
L1 length：16/20/25/30mm
Cam length：Various cam configurations and rotations available.Cam can be customized.
Key combination: 300 KD KA#198
Remark: Key can be with plastic holder or without plastic holder.
The key can be reversible double-bitted brass key. Can be left turn and right turn.
Specification Form：
Fig.No | Lock number | Position | Key pull | Turn | L1（mm） | L2（mm） |
1 | JK503-16 | 2 | 1/2 | 90° | 16 | 33 |
2 | JK503-20 | 2 | 1/2 | 90° | 20 | 37 |
3 | JK503-25 | 2 | 1/2 | 90° | 25 | 42 |
4 | JK503-30 | 2 | 1/2 | 90° | 30 | 47 |

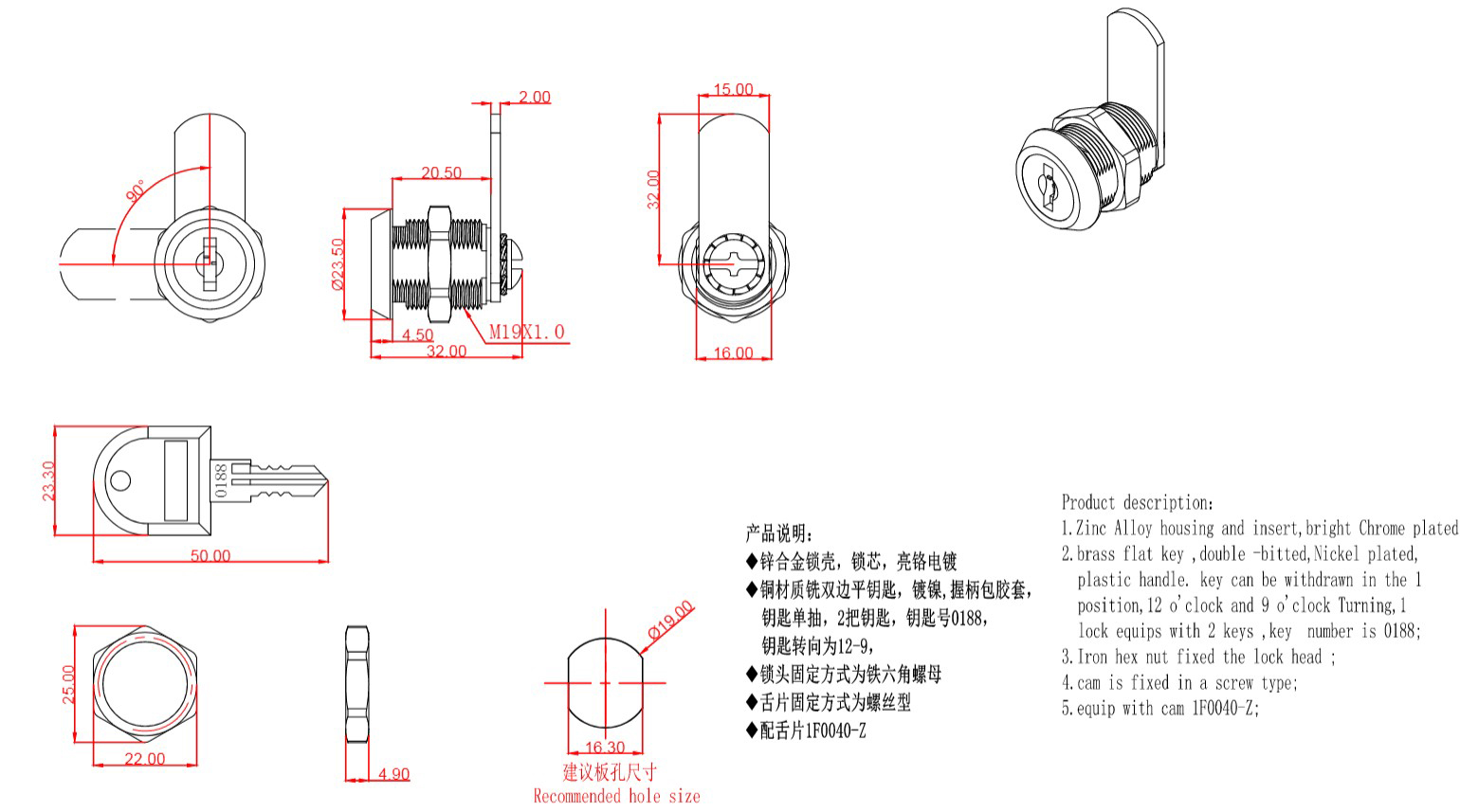

產品尺寸圖
